Configuration, delivery schedule and investment figure are set by project scope. From your specification we prepare the supply plan from the manufacturer line and the integration scope.
Enterprise supply · specification support · integration engineering
Overview

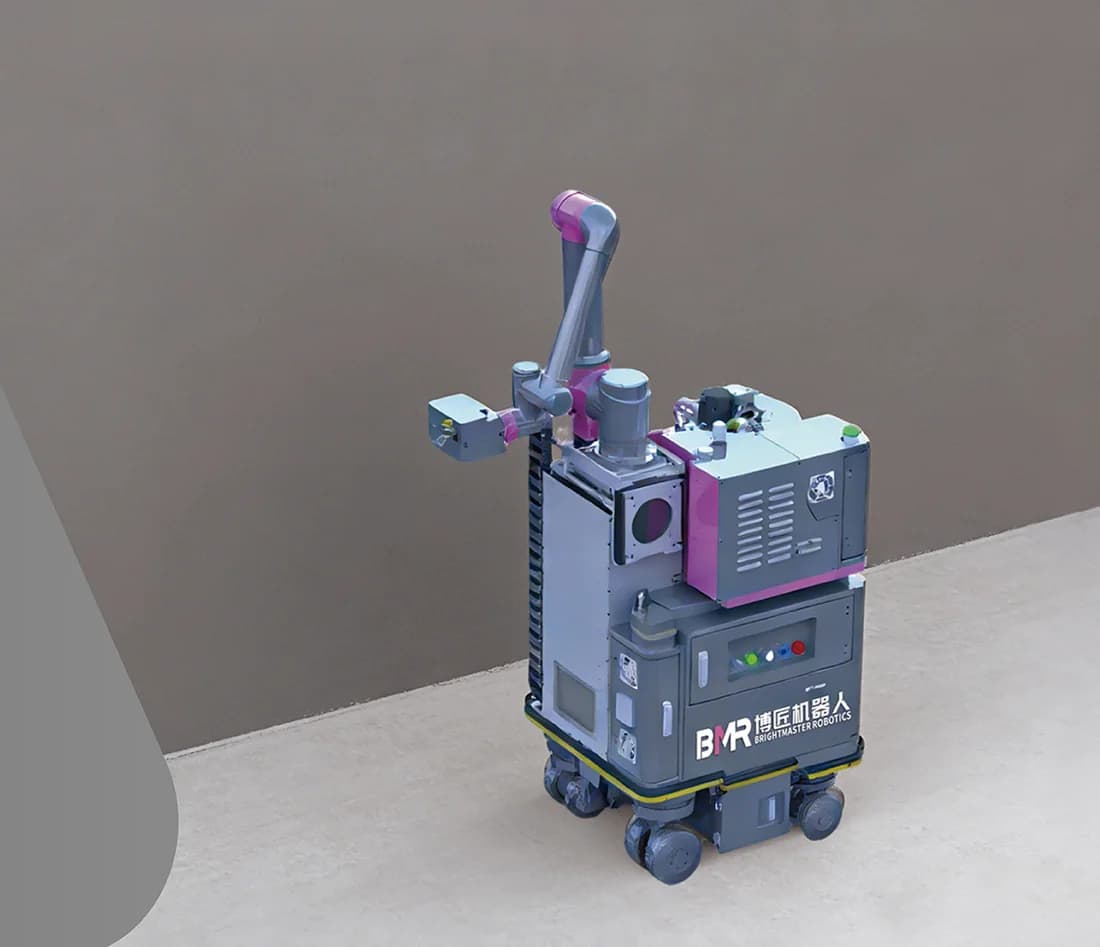

The Intelligent Coating Robot is the new-generation fully automatic paint application platform of BMR's decoration series. It is designed as a platform: different function modules make it spray putty and latex paint or sand putty. The spraying editions P45 and P65 carry a 60 litre material tank and work up to 4,500 and 6,500 mm; the sanding editions M40 and M60 reach 4,000 and 6,000 mm with a 100 litre dust box. The P45 and M40 measure 860 × 760 × 1750 mm at about 500 and 450 kg, the P65 and M60 1630 × 1150 × 1750 mm at about 650 and 600 kg. Output is 80 m²/h of single-pass putty and 200 m²/h of latex on the P45, 100 and 250 m²/h on the P65; the M40 sands 60 m²/h and the M60 80 m²/h of putty. Coverage exceeds 95 percent in spraying, 85 percent on the M40 and 90 percent on the M60. The robot perceives building features such as walls, ceilings and bay windows itself; the in-house RTPC real-time perception system starts the job at one touch without pre-scanning, drawings or BIM. With running spray and dynamic flow control, putty and latex spraying output is 6 times manual and putty sanding 2 times; a triple-domain controller keeps spraying and sanding parameters in closed loop. Travel speed is under 0.5 m/s, obstacle clearance 30 mm, gap clearance 50 mm, climb 10° and positioning accuracy ±30 mm; the battery runs 5 hours. In the fine and industrial decoration of homes, schools, hospitals, offices and large public buildings it works long shifts without a break, reduces labour and lowers the risk of respiratory occupational disease. Suitable materials: interior wall putty and water-based putty, latex and emulsion paint, water-based interior paint and primer compatible with the spraying system; a new material is compatibility-tested against its specification or a sample.
One touch, no pre-scan
The RTPC real-time perception system recognises walls, ceilings and bay windows itself; the job starts at one touch without drawings, BIM or hand scanning. Site construction deviations are detected on the spot.
Six times manual output
With running spray and dynamic flow control, putty and latex spraying output is 6 times manual and putty sanding 2 times; the P65 sprays 100 m² of putty and 250 m² of paint per hour.
Up to six and a half metres
The P45 and M40 work to 4.5 and 4 m with a body that enters residential interiors; the P65 and M60 with the height module reach 6.5 and 6 m. Coverage on walls, ceilings and bay windows exceeds 90 percent.
One platform, four editions
The same base becomes the P45 and P65 with the spraying module and the M40 and M60 with the sanding module, carrying a 60 L material tank or a 100 L dust box. The battery runs 5 hours and closed-loop control keeps quality constant.
Intelligent Coating Robot P45 / P65 / M40 / M60: Technical Analysis
One platform, three jobs
Interior painting is three steps: putty, sanding, paint. The Intelligent Coating Robot does all three with modules mounted on one base: with the spraying module the P45 and P65 spray putty and latex paint, with the sanding module the M40 and M60 sand putty. The RTPC real-time perception system recognises walls, ceilings and bay windows itself; the job starts at one touch without pre-scanning, drawings or BIM. Overall coverage on walls, bay windows and ceilings exceeds 90 percent; workers are less exposed to paint mist, putty dust and work at height.
Which edition to choose
The P45 (4.5 m, putty 80 and paint 200 m² per hour) for apartments, offices, schools and hotels with standard floor heights; the P65 (6.5 m, putty 100 and paint 250 m² per hour) for high walls, ceilings, hospitals, exhibition halls and large public buildings. The M40 (4 m, 60 m² per hour) for standard residential and commercial interior wall sanding; the M60 (6 m, 80 m² per hour) for high-wall and ceiling sanding on large commercial and public projects. The P45 and M40 at 860 × 760 × 1750 mm pass through a residential door; the P65 and M60 at 1630 × 1150 × 1750 mm carry the height module. Project type, maximum working height, total area and the required process decide the edition.
How it works
- Select the coating or grinding module.
- Load the putty or latex paint into the material hopper.
- Move the robot into the designated construction area.
- Start one-click automatic or semi-automatic operation.
- The robot identifies the working environment in real time and completes the wall or ceiling to the selected mode.
- Inspect the finished surface and perform local manual touch-up where necessary.
Applications
- Residential apartment and housing projects.
- Office buildings and commercial complexes.
- Hotels and serviced apartments.
- Schools, universities and training centres.
- Hospitals and healthcare facilities.
- Shopping malls, exhibition halls, conference centres, transportation stations and public buildings.
- Industrial buildings and high-wall and ceiling projects.
Price and sourcing
The Akıllı Boya Robotu is sourced for Turkey on a project basis; import, customs clearance, commissioning and operator training are part of delivery. Investment is set by corporate quotation against edition, configuration, spare and wear-part provisioning, training scope and quantity. Before quotation, the coating type, wall material, maximum working height, total area and required productivity are provided. Request a quotation with your project profile.
Intelligent Coating Robot Technical Specifications
| Parameter | P45 | P65 | M40 | M60 |
|---|---|
| Weight | About 500 kg | About 650 kg | About 450 kg | About 600 kg |
| Dimensions (L × W × H) | 860 × 760 × 1750 mm | 1630 × 1150 × 1750 mm | 860 × 760 × 1750 mm | 1630 × 1150 × 1750 mm |
| Operating endurance | 5 h |
| Capacity | Material hopper 60 L | Material hopper 60 L | Dust container 100 L | Dust container 100 L |
| Working height | ≤4,500 mm | ≤6,500 mm | ≤4,000 mm | ≤6,000 mm |
| Overall productivity | Single-coat putty 80 m²/h, single-coat emulsion 200 m²/h | Single-coat putty 100 m²/h, single-coat emulsion 250 m²/h | Putty grinding 60 m²/h | Putty grinding 80 m²/h |
| Coverage rate | Above 95% | Above 95% | Above 85% | Above 90% |
| Moving speed | ≤0.5 m/s |
| Obstacle crossing height | ≤30 mm |
| Trench crossing width | ≤50 mm |
| Climbing angle | ≤10° |
| Positioning accuracy | ±30 mm |
Summary
The Intelligent Coating Robot mechanises the three steps of interior painting on one platform: putty and latex spraying (P45, P65), putty sanding (M40, M60), working height up to 6.5 m, 250 m² of paint per hour, coverage above 90 percent and one touch without pre-scanning. For finishing works on mass housing, hotels, hospitals and public buildings, request a quotation with your project type, floor height and total area.
Details & Performance Parameters.
Physical Architecture
Dynamic Performance
Energy & Protection
Computing & Intelligence
RTPC real-time perception and construction system; triple-domain controller with closed-loop spraying and sanding parameters; automatic motion control algorithm
Real-time perception sensors detecting wall, ceiling and bay-window features; dynamic flow control
One-touch job start (no pre-scan, drawings or BIM); fully and semi-automatic putty and latex spraying; putty sanding; running spray
BMR unified APP; conversion between P and M editions by module change
Hardware & Materials
Material tank 60 L (P45, P65); dust box 100 L (M40, M60); interchangeable spraying and sanding modules
Bring Autonomous Power to the Field.
Start your Akıllı Boya Robotu P45/P65/M40/M60 project with our experts now.
Get a Akıllı Boya Robotu P45/P65/M40/M60 Quote
There is no single list price; the investment depends on configuration and use case. Fill in the form and we will return with a clear, tailored quote.
- Supply plan and delivery schedule from the manufacturer line
- Technical feasibility against your project requirements
- Integration scope and engineering support
- Specification and documentation support for corporate procurement
Prefer to talk now: 0850 532 6 777
About the BMR Akıllı Boya Robotu P45/P65/M40/M60
Akıllı Boya Robotu P45/P65/M40/M60 Frequently Asked Questions
The most commonly asked questions and answers about Akıllı Boya Robotu P45/P65/M40/M60.
The P45 and P65 spray putty and latex paint (60 L tank, 4.5 and 6.5 m height); the M40 and M60 sand putty (100 L dust box, 4 and 6 m height). With a module change the same platform does both jobs; projects with floor heights above 4.5 m choose the 65 and 60 editions.
Interior wall putty and water-based putty, latex and emulsion paint, water-based interior paint and primer compatible with the spraying system; cement-based or plastered walls are suitable after preparation. Viscosity, particle size and drying characteristics affect output; a new material is compatibility-tested against its specification or a sample.
No. The RTPC real-time perception system recognises walls, ceilings and bay windows itself; the job starts at one touch without pre-scanning, drawings or path planning. For projects wanting BIM path planning the NP320 Pro Indoor Coating Robot is offered separately.
BMR robots are controlled from a single application (the BMR unified APP); the operator connects to several nearby robots from one device, and robot plug-ins are downloaded in the app. Floor and coating robots report worked area, time and status through FMS cloud data management.
The BMR Akıllı Boya Robotu is sourced on a project basis: the site schedule, floor area, concrete or coating system and site access are settled at the survey; import, commissioning and operator training are part of delivery. For a quotation, send the project type, total square metres and the works programme.
