NVIDIA-Powered Computing Platform
The NVIDIA Jetson Orin AGX plus RK3588 dual-processor architecture delivers up to 275 TOPS.
- A vapor-chamber system and dual-fan cooling keep operation stable under heavy, continuous workloads.
PUDU D5
Industrial Quadruped Delivery and Inspection Robot
- Payload
- 20-30 kg
- Continuous Walking
- Speed
- 5 m/s
- Cruise Speed
- Step
- 30 cm
- Max Step (D5)
- Protection
- IP67
- -20°C to 55°C
PUDU D5 is a quadruped delivery and inspection robot built for harsh weather and industrial environments. Its NVIDIA Jetson Orin AGX plus RK3588 dual-processor platform delivers up to 275 TOPS; two 3D LiDARs and four fisheye cameras give 360° perception.
Read moreShow less
It clears 30 cm steps and 45° slopes, reaches 5 m/s, walks with 20-30 kg of payload and operates from -20°C to 55°C with IP67 protection. It comes in two forms: the walking D5 and the wheeled-leg D5-W.
Turkey distributor · on-site commissioning and support protocol (SLA) · 1-year warranty
Overview
PUDU D5 is Pudu Robotics' industry-grade quadruped delivery and inspection robot. Its 900 × 543 × 572 mm body weighs 56 kg with battery; it walks with 20-30 kg of continuous payload and cruises at up to 5 m/s.
The computing platform pairs an NVIDIA Jetson Orin AGX 64 GB with an RK3588 (up to 275 TOPS). Perception combines two spherical 3D LiDARs (96-line standard, 192-line optional) with four fisheye cameras for 360° coverage and centimeter-level positioning.
On terrain it clears 30 cm steps and 45° ascents and descents, with climbing capability up to 80 cm. IP67 protection, a -20°C to 55°C operating range and cold start below -10°C keep it on duty in rain, snow and dust. The 1000 Wh battery gives 2-2.5 hours on the D5 and 2-3 hours on the D5-W.
The robot is controlled by voice and gesture (10+ gestures) and follows the user through crowds using trajectory prediction; the RCOS remote control system provides live status and a panoramic video feed. With the metal delivery crate, inspection kit and charging station it adapts to security patrol, facility inspection, on-site delivery and research scenarios.
As the Pudu Robotics distributor for Turkey, Robotlar.org delivers the D5 and D5-W with installation, operator training, a 1-year warranty and a technical support protocol (SLA). The investment is set by corporate quotation according to form, add-on set and quantity.
3 use casesThe PUDU D5 in motion
Tap the cover to play; sound and loading start only on click.
Which D5 fits your needs?
The manufacturer's official variant matrix; the values are documented data.
| Feature | D5 | D5-W |
|---|---|---|
| Locomotion | Dört ayaklı yürüyüş | Tekerlekli bacak (dört ayaklı gövde) |
| Maximum step height | 30 cm | 25 cm |
| Operating time | 2-2,5 saat | 2-3 saat |
| Continuous walking payload | 20-30 kg | 20-30 kg |
| Slope | 45° çıkış / 45° iniş | 45° çıkış / 45° iniş |
| Quote | Get a Quote for This ModelD5 | Get a Quote for This ModelD5-W |
Both forms share the same computing platform, perception set, 1000 Wh battery and IP67 protection; the difference is at the foot. The wheeled-leg form has its own page under PUDU D5-W.
D5
Patrol and inspection routes dominated by stairs, tall steps and rough terrain.
D5-W
Long flat corridors, campus roads and delivery routes with long in-facility distances; longer operating time.
Use Cases
The use cases the manufacturer defines for the PUDU D5.
- Security and patrol
- Field inspection
- Education and research
Key Advantages
Autonomous Navigation with 360° Perception
Dual 96-line spherical LiDARs combined with four fisheye cameras create a full-coverage perception system: centimeter-level positioning and accurate dynamic obstacle avoidance.
- A dual 192-line LiDAR upgrade is available on request for specialized applications.
All-Terrain Mobility for Complex Environments
Clears 30 cm steps and 45° slopes; cruises at up to 5 m/s for fast, stable movement across urban and off-road environments.
- Climbing capability reaches 80 cm.

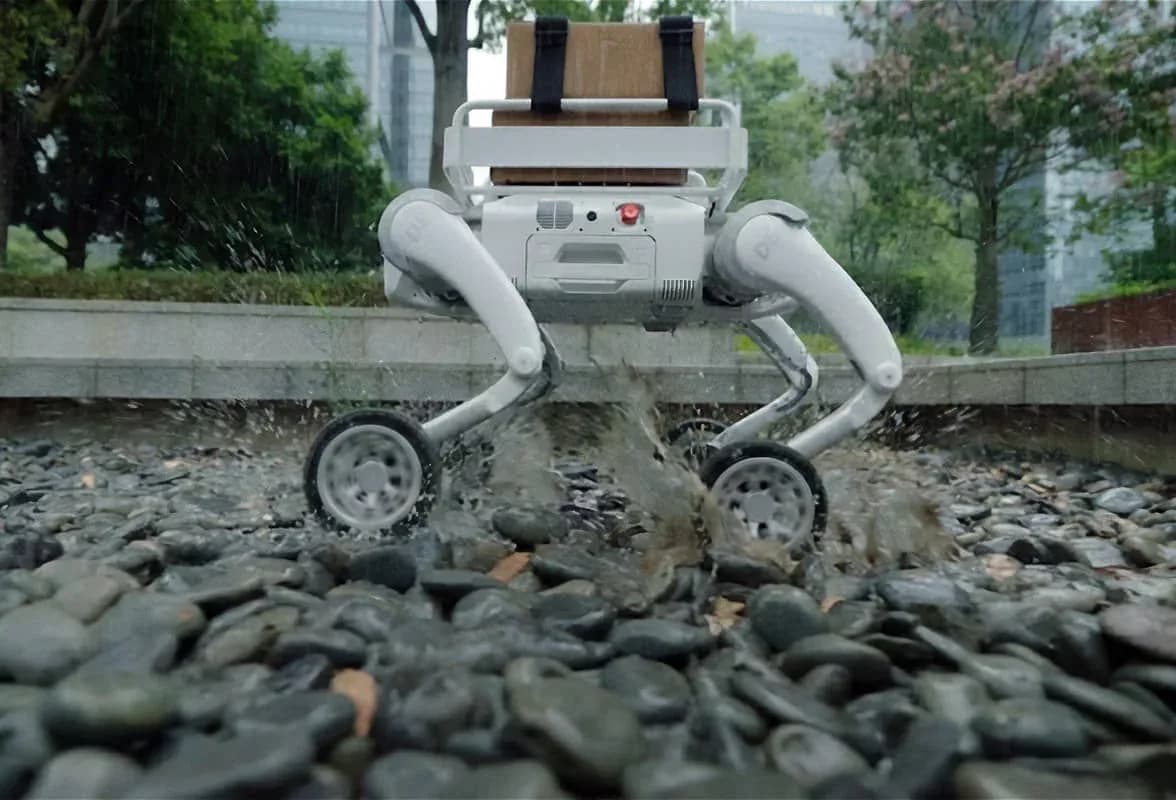

All-Weather Durability
Cold start below -10°C, a -20°C to 55°C operating range and IP67 ingress protection: dependable duty in rain, snow, dust and fluctuating climates.
Intuitive Interaction and Smart Follow
Voice and gesture control works with 10+ natural gestures, deep-vision sensing and a 6-mic array; AI noise reduction and sound localization respond accurately in noisy environments.
- Dynamic obstacle avoidance and trajectory prediction follow the user precisely in crowded spaces with real-time path adjustment.

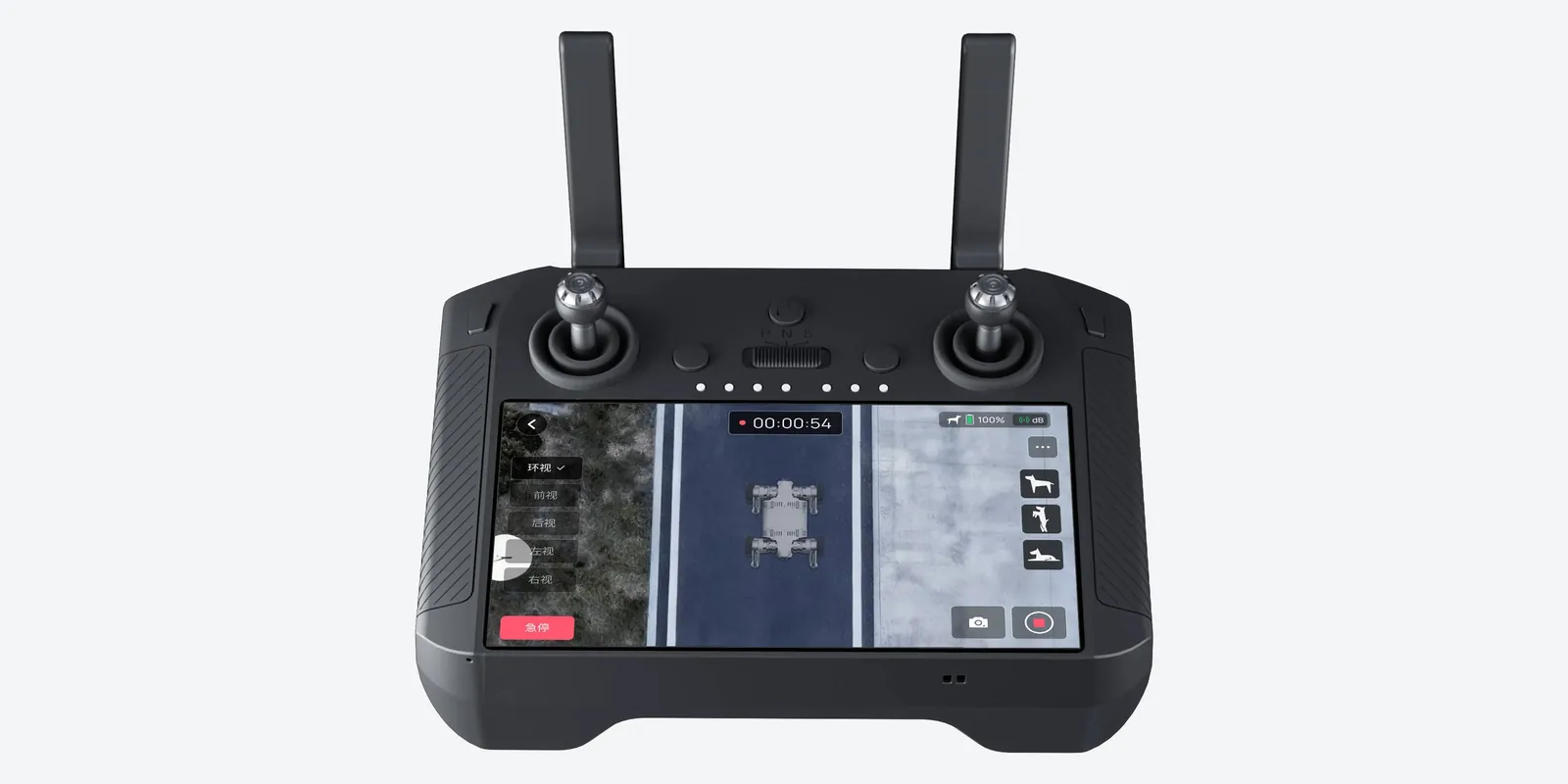

Remote Vision and Control
The RCOS remote control system monitors real-time operating status and issues commands instantly; live panoramic views from the cameras give full visibility of the on-site environment.

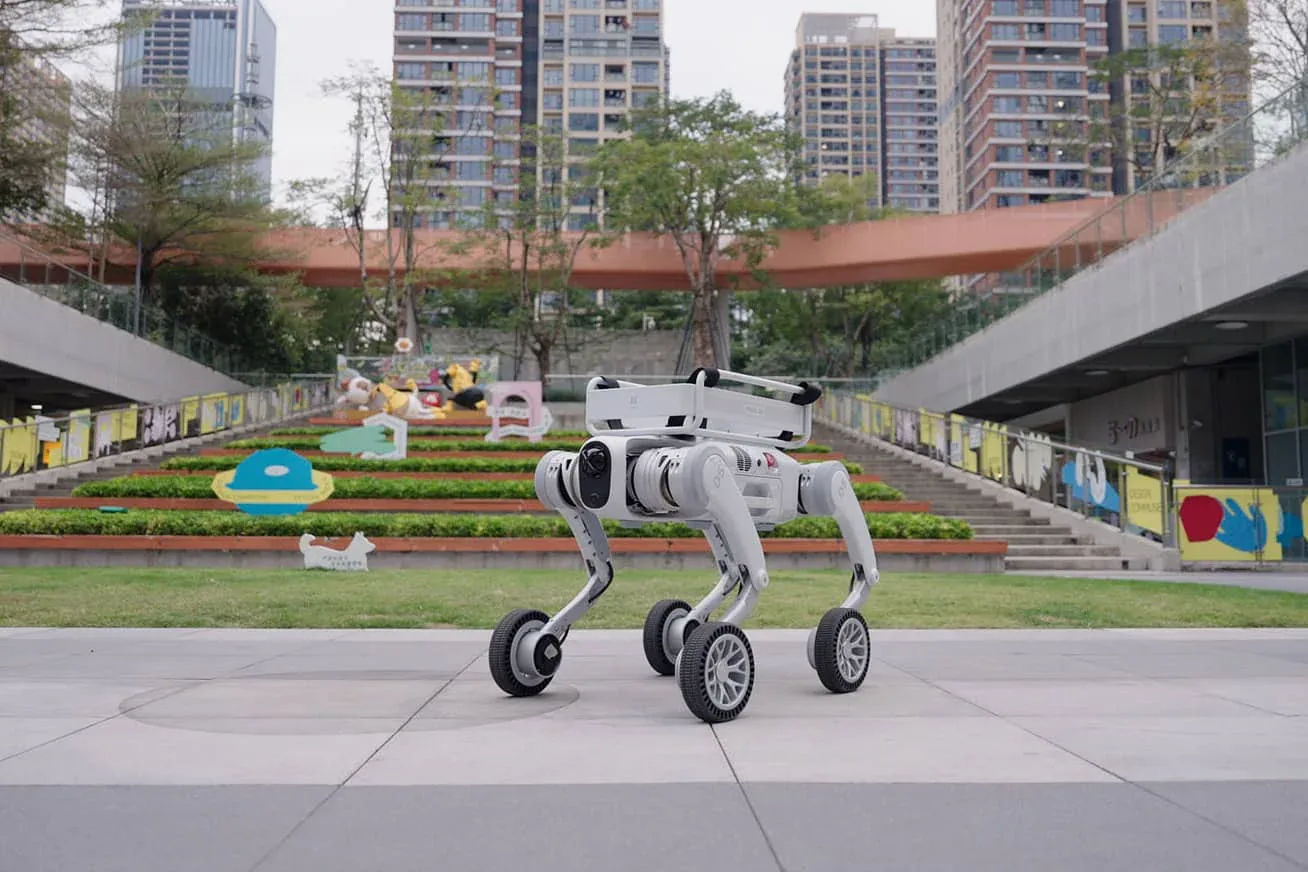

Modular Expansion
The open architecture supports add-ons such as the metal delivery crate, inspection kit and charging station: security, inspection, logistics and research scenarios are built on one body.
- The inspection kit and charging dock are separately priced options.
Two Forms, Total Terrain Mastery
The walking D5 excels on stairs and tall steps, the wheeled-leg D5-W on long flat routes; both forms share the same platform and 1000 Wh battery.
The PUDU D5 up close
6 images; tap to enlarge.
Technical Specifications
17 values in 7 categories; data published by the manufacturer.
General structure
- Manufacturer note
- Climbing capability up to 80 cm | Autonomous navigation, autonomous following and voice interaction | Inspection kit and charging dock optional
Size and weight
- Dimensions (standing)
- 900 × 543 × 572 mm (standing)
- Weight
- 61 kg (battery included)
Motion and performance
- Walking payload
- 20-30 kg (continuous walking)
- Maximum speed
- 5 m/s
- Climb angle
- 25° ascent / 45° descent
- Obstacle and step
- 30 cm (D5) / 25 cm (D5-W)
- Joint torque
- 165 Nm
Power and runtime
- Battery capacity
- 1000 Wh
- Runtime
- 2-2.5 h (D5) / 2-3 h (D5-W)
Sensors and connectivity
- Sensors
- Two spherical 3D LiDARs (96-line standard, 192-line optional) + four fisheye cameras: full-coverage perception, centimeter-level positioning and dynamic obstacle avoidance
- Connectivity
- RCOS remote control system: live operating status, instant commands and panoramic video feed from the cameras
- Interaction
- Voice and gesture control (10+ natural gestures), 6-mic array, AI noise reduction and sound localization; smart follow with trajectory prediction in crowds
Software and development
- Processor
- NVIDIA Jetson Orin AGX 64 GB + RK3588 dual processor, up to 275 TOPS; vapor-chamber cooling with dual fans for stable operation under continuous load
- Software features
- Autonomous navigation and patrol, open architecture for add-ons such as the metal delivery crate and inspection gimbal, automatic charging dock (optional)
Environmental resilience
- Ingress protection
- IP67
- Operating temperature
- -20°C to 55°C; cold start below -10°C
Sources and documents
Verified on the manufacturer page on 18 September 2026.
An itemised quote for the PUDU D5 is prepared by configuration, quantity and delivery scope.
Purchasing support
Supply model
Delivered from Turkey stock; installation, training and on-site service under one responsibility.
Pre-sales assessment
Site and mission focused technical feasibility; specification and administrative process support.
- Continue
Demo and site visit request
Send a demo request; availability and scope are settled in the call.
- Continue
Source documents
Technical values come from the manufacturer's documents; verified on 18 September 2026. 1 documents at the bottom of the page.
Get a quote for the D5
Robotic system costs are optimised according to the selected hardware platform, additional sensor and payload configurations, and the integration scenarios specific to your site. Share your requirements and our engineering team will prepare a feasibility report and a pro forma quotation tailored to your organisation.
- Supply and delivery scheduling backed directly by the manufacturer
- Site- and mission-focused technical feasibility and simulation
- Turnkey hardware, software and mission integration
- Advisory on corporate tenders, specifications and administrative processes
Direct contact and advisory line: 0850 532 6 777
D5: Frequently Asked Questions
The most common questions about the PUDU D5.
How much does the PUDU D5 carry and how fast does it go?
It carries 20-30 kg in continuous walking and cruises at up to 5 m/s. It clears 30 cm steps and 45° ascents and descents, with climbing capability up to 80 cm.
What is the difference between the D5 and the D5-W?
The D5 walks on four legs, the D5-W uses wheeled legs. The D5 clears 30 cm steps and runs 2-2.5 hours; the D5-W clears 25 cm steps and runs 2-3 hours. Computing platform, perception set, 1000 Wh battery and IP67 protection are identical.
Does the PUDU D5 work outdoors and in winter?
Yes. IP67 protection, a -20°C to 55°C operating range and cold start below -10°C keep it on duty in rain, snow and dust.
Which add-ons can be fitted?
The open architecture supports add-ons such as the metal delivery crate, the inspection kit (gimbal) and the automatic charging station. The inspection kit and charging dock are optional and priced separately.
How is the PUDU D5 sourced in Turkey?
Robotlar.org is the Pudu Robotics distributor for Turkey. The D5 and D5-W are delivered with installation, operator training, a 1-year warranty and a technical support protocol (SLA); the investment is set by corporate quotation according to form, add-on set and quantity.
