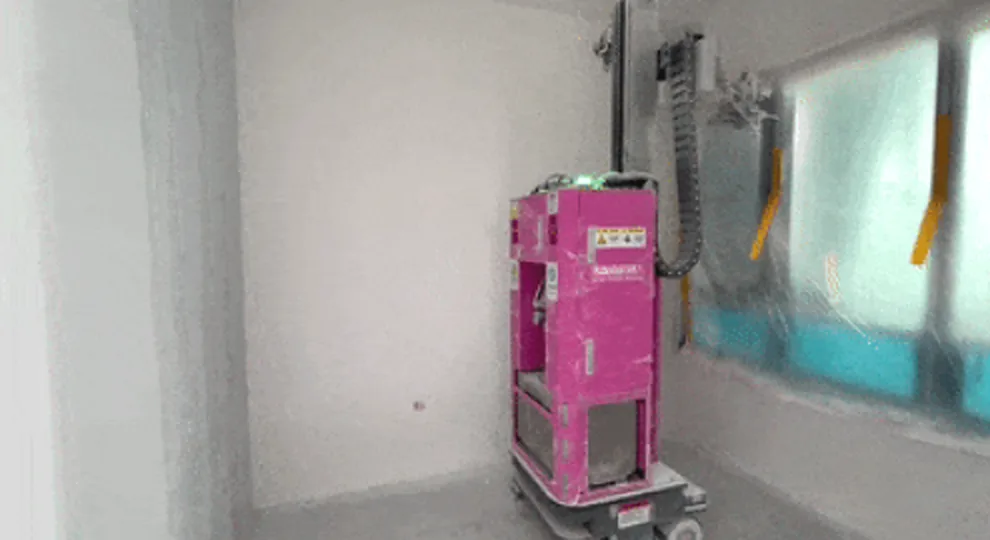

Five times a hand roller
Maximum spraying output is 180 m² per hour and overall site output of 120 m² per hour is about five times manual roller coating, with long continuous operation.
- At QXY in Singapore 69-75 m² of wall was painted in 14 minutes.
BMR İç Mekan Boya Robotu NP320
Automatic Emulsion Paint Spraying Robot
- Work capacity
- 180 m²/h
- Maximum spraying efficiency
- Spraying height
- ≤3,200 mm
- Walls, bay windows, beams and ceilings
- Positioning accuracy
- ±20 mm
- Obstacle crossing ≤20 mm
The BMR NP320 is an indoor painting robot that sprays emulsion paint fully automatically on walls, ceilings, bay windows, beams and gypsum lines in residential, apartment, hotel and office interiors.
Read moreShow less
It handles primer and topcoat spraying, automatic path planning, parameter control, APP remote monitoring and offline simulation analysis; maximum spraying output is 180 m² per hour, about five times manual roller coating, with coverage up to 100 percent. The 350 kg body works up to 3,200 mm, carries a 60 L bucket and runs more than 4 hours; it holds the High-tech Product of Guangdong Province and China Patent Excellence Award and its technical level has been rated internationally leading.
Enterprise supply · specification support · integration engineering
Overview
The Indoor Coating Robot NP320 is the emulsion paint spraying robot of BMR's decoration series, designed for interior painting in residences, apartments, hotels, offices and commercial spaces. Its spraying scope covers interior walls, bay windows, beams, ceilings, gypsum lines and similar building elements. It offers primer and topcoat spraying, automatic path planning, parameter control, APP remote monitoring and offline simulation analysis; in automatic mode it sprays both primer and topcoat fully automatically.
Total weight is under 350 kg, dimensions 1050 × 690 × 1780 mm, spraying height up to 3,200 mm and positioning accuracy ±20 mm. Maximum spraying output is 180 m² per hour; on site the overall output of 120 m² per hour is about five times manual roller coating, with long continuous operation. Precise spraying technique and parameter control give an even paint finish; overall coverage reaches 100 percent. The battery runs more than 4 hours and charges in under 2.5 hours; there is a 60 L bucket, 0.5 m/s speed, 20 mm obstacle and 50 mm trench crossing and a 6° climbing angle. The robot has been honoured as a High-tech Product of Guangdong Province and with the China Patent Excellence Award, and its overall technical level has been rated internationally leading. Projects wanting both putty and latex coating choose the NP320 Pro with BIM path planning. References: at the Hong Kong Housing Authority's Tsing Yi public housing site (February 2023), as the Authority's first indoor spraying robot, it painted the walls and ceiling of a 2-3 person unit in 15-20 minutes with automatic coverage above 90 percent; at the Sheung Shui public housing project (November 2024), together with the putty application and putty sanding robots, it finished the coating of 10 floors in just over a month, and precise overlapping spraying saved HK$24.4 of paint per unit; at the ISO/Soilbuild project in Singapore (3 August 2024) wall spraying of a 59.4 m² three-bedroom unit took 45 minutes and the ceiling 30; at the QXY Staff Apartment in Singapore (16 August 2024) 69-75 m² of wall was painted in 14 minutes with 100 percent coverage (297-322 m² per hour); at the Yekaterinburg project in Russia (February 2025) 120 m² per hour, five times a hand roller; at The Myst in Singapore (Bouygues, two 24-storey blocks) two robots completed 4,000 m² of painting in five units on the 19th floor with coverage up to 100 percent; at DAMAC Bay and Cavalli Tower in Dubai and Aurelle in Singapore it worked in alternation with the putty grinding robot.
The BMR İç Mekan Boya Robotu NP320 in motion
Tap the cover to play; sound and loading start only on click.
Key Advantages

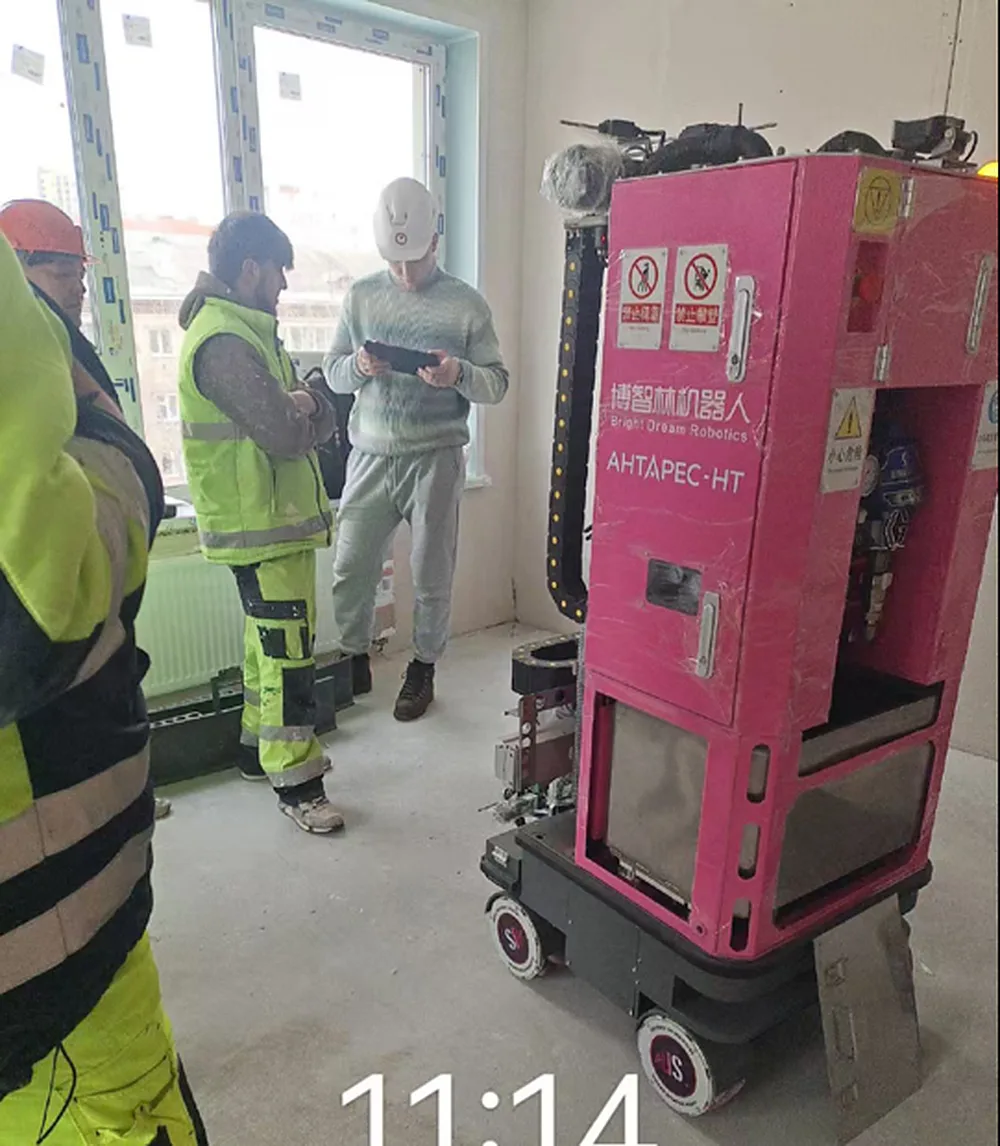

Primer and topcoat fully automatic
In automatic mode both primer and topcoat are sprayed fully automatically; automatic path planning, parameter control and offline simulation analysis make the job visible in advance.
- One person runs several machines remotely.

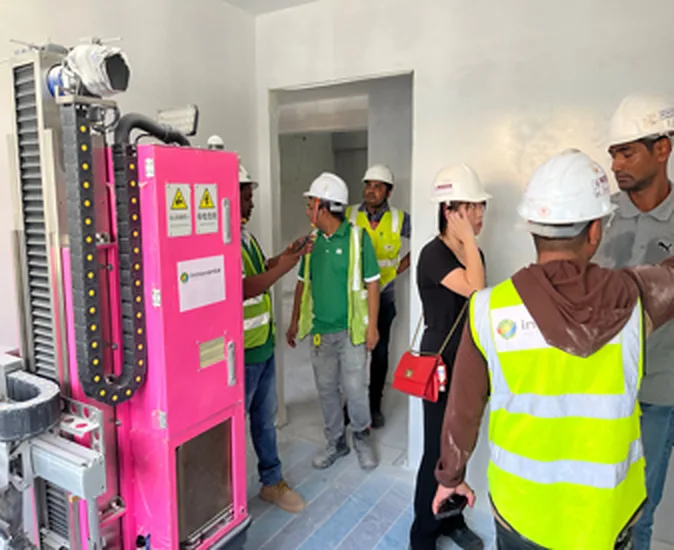

Walls, ceilings, bay windows, beams, gypsum lines
Spraying scope covers interior walls, bay windows, beams, ceilings and gypsum lines; it works up to 3,200 mm with ±20 mm positioning and overall coverage reaches 100 percent.

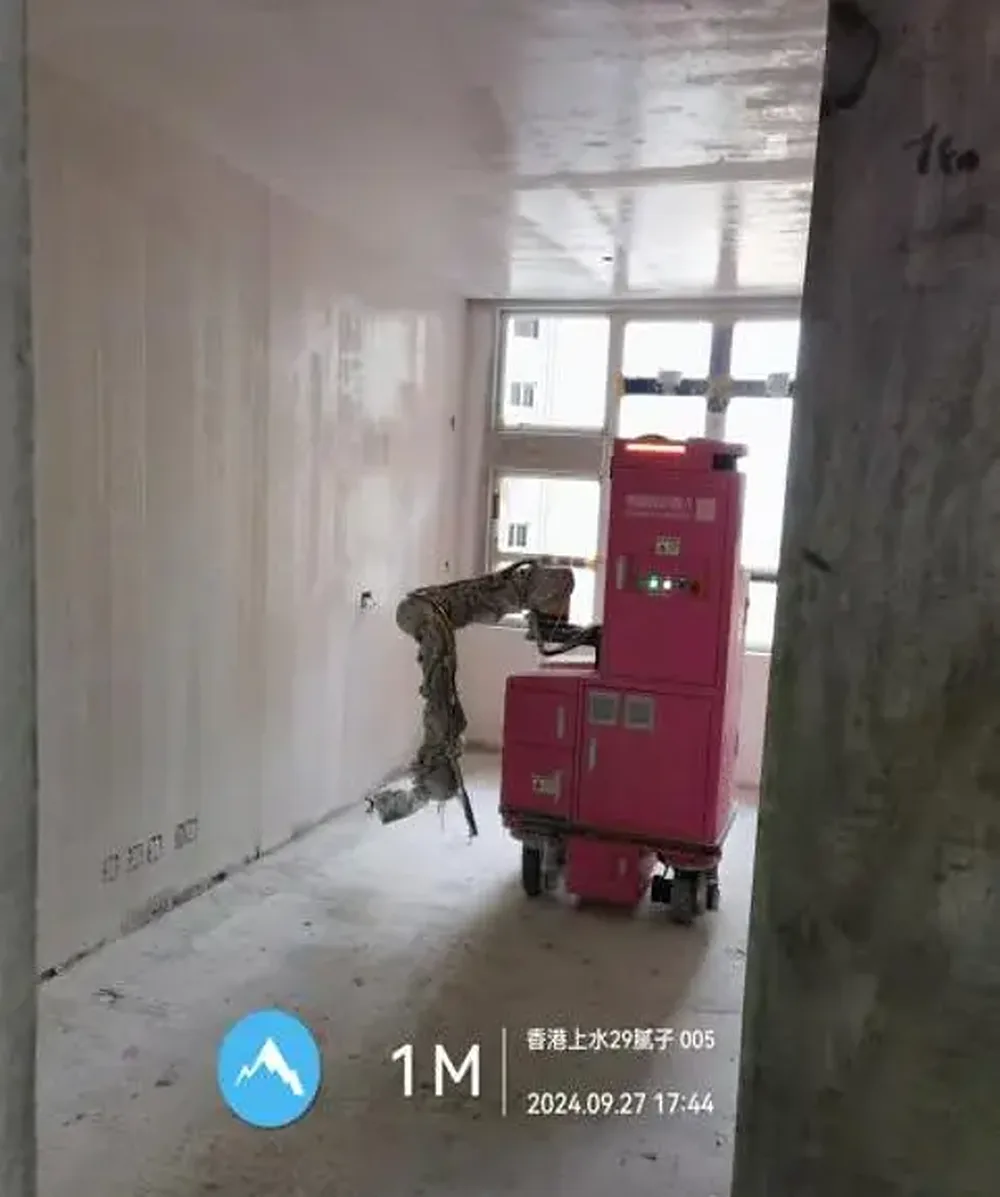

Proven in public housing
The Hong Kong Housing Authority's first indoor spraying robot: the walls and ceiling of a unit in 15-20 minutes with coverage above 90 percent.
- At Sheung Shui the coating of 10 floors finished in just over a month and HK$24.4 of paint was saved per unit.
The BMR İç Mekan Boya Robotu NP320 up close
4 images; tap to enlarge.
Technical Specifications
15 values in 6 categories; data published by the manufacturer.
General structure
- Manufacturer note
- Operation mode: fully automatic spraying of both primer and topcoat. Automatic path planning, parameter control, remote monitoring through the app and off-line simulation analysis. It can work in an unlit area.
Size and weight
- Dimensions (standing)
- 1050 × 690 × 1780 mm
- Weight
- ≤350 kg
Motion and performance
- Work capacity
- Spraying height ≤3,200 mm; maximum spraying efficiency 180 m²/h (120 m²/h in the manufacturer's brochure); coverage up to 100 percent; bucket 60 L; positioning ±20 mm
- Maximum speed
- ≤0.5 m/s
- Climb angle
- ≤6°; obstacle ≤20 mm; trench ≤50 mm
- Positioning accuracy
- ±20 mm
- Tank capacity
- 60 L bucket
Power and runtime
- Battery
- Charge ≤2.5 h
- Runtime
- ≥4 hours
- Charging time
- ≤2.5 h
Sensors and connectivity
- Sensors
- Indoor positioning (±20 mm); wall, ceiling, bay window and beam recognition
- Interfaces
- APP remote monitoring; BMR unified APP
Software and development
- Processor
- Automatic path planning; spraying parameter control; offline simulation analysis; precise overlapping spraying
- Software features
- Primer and topcoat spraying; fully automatic operation mode; long continuous operation; one person running several machines remotely
Sources and documents
Verified on the manufacturer page on 18 September 2026.
An itemised quote for the BMR İç Mekan Boya Robotu NP320 is prepared by configuration, quantity and delivery scope.
Indoor Coating Robot NP320: Technical AnalysisDesign decisions, comparison table and evaluation
From roller to automatic spraying
In interior painting, output and quality depend on the painter's arm; scaffolding goes up for ceilings and high walls, and coverage and thickness vary from room to room. The NP320 plans its route itself, controls spraying parameters and applies primer and topcoat fully automatically; precise spraying technique gives a uniform surface and coverage reaches 100 percent. Offline simulation analysis shows the job before it starts and APP remote monitoring gives status during work; one operator runs several robots and workers stay away from paint mist.
Selection criteria
When choosing an automatic spraying robot, spraying height, output, bucket capacity, battery life, positioning accuracy and supported wall structures are evaluated. With 3,200 mm height, 180 m² per hour, a 60 L bucket, more than 4 hours of operation and ±20 mm positioning, the NP320 covers walls, ceilings, beams and bay windows on residential, hotel, apartment and office projects; primer and topcoat, remote monitoring and adjustable spraying parameters are standard. Projects wanting both putty and latex coating choose the NP320 Pro with BIM path planning and laser SLAM navigation.
Figures from the field
- Hong Kong Housing Authority, Tsing Yi (February 2023): the Authority's first indoor spraying robot; wall and ceiling spraying of a 2-3 person unit in 15-20 minutes, one person running several machines remotely, automatic coverage above 90 percent; found suitable for standardised, repetitive, large-scale public housing.
- Sheung Shui public housing, Hong Kong (November 2024): putty application, putty sanding and indoor spraying robots with an automatic material feeding system; all coating works on 10 floors in just over a month, 2 operators and 3 robots completing one floor per day; precise overlapping spraying saved HK$24.4 of paint per unit; the Secretary for Housing visited the site on 27 November.
- ISO/Soilbuild, Toa Payoh, Singapore (3 August 2024): in a 59.4 m² three-bedroom unit wall spraying took 45 minutes and the ceiling 30; Soilbuild safety specialists observed the whole operation and the main contractor and authorised agent carried out quality acceptance.
- QXY Staff Apartment, Singapore (16 August 2024): a 7.3 × 6.6 m room with a 2.75 m ceiling; 69-75 m² of wall painted in 14 minutes with 100 percent coverage, 297-322 m² per hour; the main contractor expressed intent to cooperate on later projects.
- Yekaterinburg, Russia (February 2025): fully automatic latex spraying, overall output of 120 m² per hour about five times a hand roller, coverage up to 100 percent.
- The Myst, Singapore (Bouygues, two 24-storey blocks): two robots completed 4,000 m² of painting in five units on the 19th floor with coverage up to 100 percent.
Applications
- Interior wall and ceiling paint spraying.
- Bay window, beam, column and gypsum line spraying.
- Primer and topcoat spraying; indoor emulsion paint construction.
- Residential renovation, apartment painting, hotel room decoration, office interior painting and commercial building finishing.
Price and sourcing
The NP320 is sourced for Turkey on a project basis; import, customs clearance, commissioning and operator training are part of delivery. Investment is set by corporate quotation against edition, configuration, spare and wear-part provisioning, training scope and quantity. Project area, interior structure and painting process set the configuration. Request a quotation with your project profile.
NP320 Technical Specifications
| Parameter | Value |
|---|---|
| Total weight | ≤350 kg |
| Maximum spraying efficiency | 180 m²/h |
| Overall dimensions | 1050 × 690 × 1780 mm |
| Spraying height | ≤3,200 mm |
| Battery life | ≥4 h |
| Positioning accuracy | ±20 mm |
| Charging time | ≤2.5 h |
| Height of surmountable obstacle | ≤20 mm |
| Bucket volume | 60 L |
| Width of surmountable trench | ≤50 mm |
| Moving speed | ≤0.5 m/s |
| Climbing angle | ≤6° |
| Coating system | Emulsion (latex) paint; primer and topcoat |
Summary
The NP320 moves interior painting from roller to fully automatic spraying: 180 m² per hour, five times a hand roller, coverage up to 100 percent, primer and topcoat automatic, 3.2 m height and 4 hours of battery. It is proven in the field as the Hong Kong Housing Authority's first indoor spraying robot with a 15-20 minute job per unit, a 14-minute wall painting in Singapore and the 4,000 m² application at The Myst. For contractors doing finishing works on mass housing, hotels and offices, request a quotation with your project area and painting process.
Purchasing support
Supply model
Supply to Turkey is planned per project; import, delivery and commissioning scope are itemised in the quote.
Pre-sales assessment
Site and mission focused technical feasibility; specification and administrative process support.
- Continue
Demo and site visit request
Send a demo request; availability and scope are settled in the call.
- Continue
Source documents
Technical values come from the manufacturer's documents; verified on 18 September 2026. 1 documents at the bottom of the page.
Get a quote for the İç Mekan Boya Robotu NP320
Robotic system costs are optimised according to the selected hardware platform, additional sensor and payload configurations, and the integration scenarios specific to your site. Share your requirements and our engineering team will prepare a feasibility report and a pro forma quotation tailored to your organisation.
- Supply and delivery scheduling backed directly by the manufacturer
- Site- and mission-focused technical feasibility and simulation
- Turnkey hardware, software and mission integration
- Advisory on corporate tenders, specifications and administrative processes
Direct contact and advisory line: 0850 532 6 777
İç Mekan Boya Robotu NP320: Frequently Asked Questions
The most common questions about the BMR İç Mekan Boya Robotu NP320.
What is the NP320 used for?
For indoor paint spraying: primer, topcoat, wall and ceiling spraying. It suits residential, apartment, hotel, office and commercial interior projects; bay windows, beams and gypsum lines are within scope.
Does it spray emulsion paint?
Yes. The NP320 is designed for indoor emulsion (latex) paint spraying and applies primer and topcoat on walls, ceilings, bay windows, beams and gypsum lines.
Why a robot instead of manual spraying?
Output rises to 180 m² per hour, repetitive manual work falls and coverage becomes consistent; in Yekaterinburg overall output measured five times a hand roller. It is especially suited to large interior painting projects.
How does it differ from the NP320 Pro?
The NP320 sprays emulsion paint only and focuses on output (350 kg, 180 m² per hour). The NP320 Pro applies both latex and putty and carries BIM path planning, laser SLAM navigation, automatic obstacle avoidance and dual batteries (680 kg, 160 m² per hour of latex and 60 m² of putty). Projects wanting both putty and paint choose the Pro.
How did it perform on site?
At Tsing Yi in Hong Kong the walls and ceiling of a unit took 15-20 minutes, and at Sheung Shui the coating of 10 floors finished in just over a month. In Singapore a 59.4 m² unit took 45 minutes for walls and 30 for the ceiling, and at QXY 69-75 m² of wall took 14 minutes; at The Myst two robots painted 4,000 m².
How are several robots managed on one site?
BMR robots are controlled from a single application (the BMR unified APP); the operator connects to several nearby robots from one device, and robot plug-ins are downloaded in the app. Floor and coating robots report worked area, time and status through FMS cloud data management.
How is it sourced in Turkey?
The BMR NP320 is sourced on a project basis: the site schedule, floor area, concrete or coating system and site access are settled at the survey; import, commissioning and operator training are part of delivery. For a quotation, send the project type, total square metres and the works programme.
