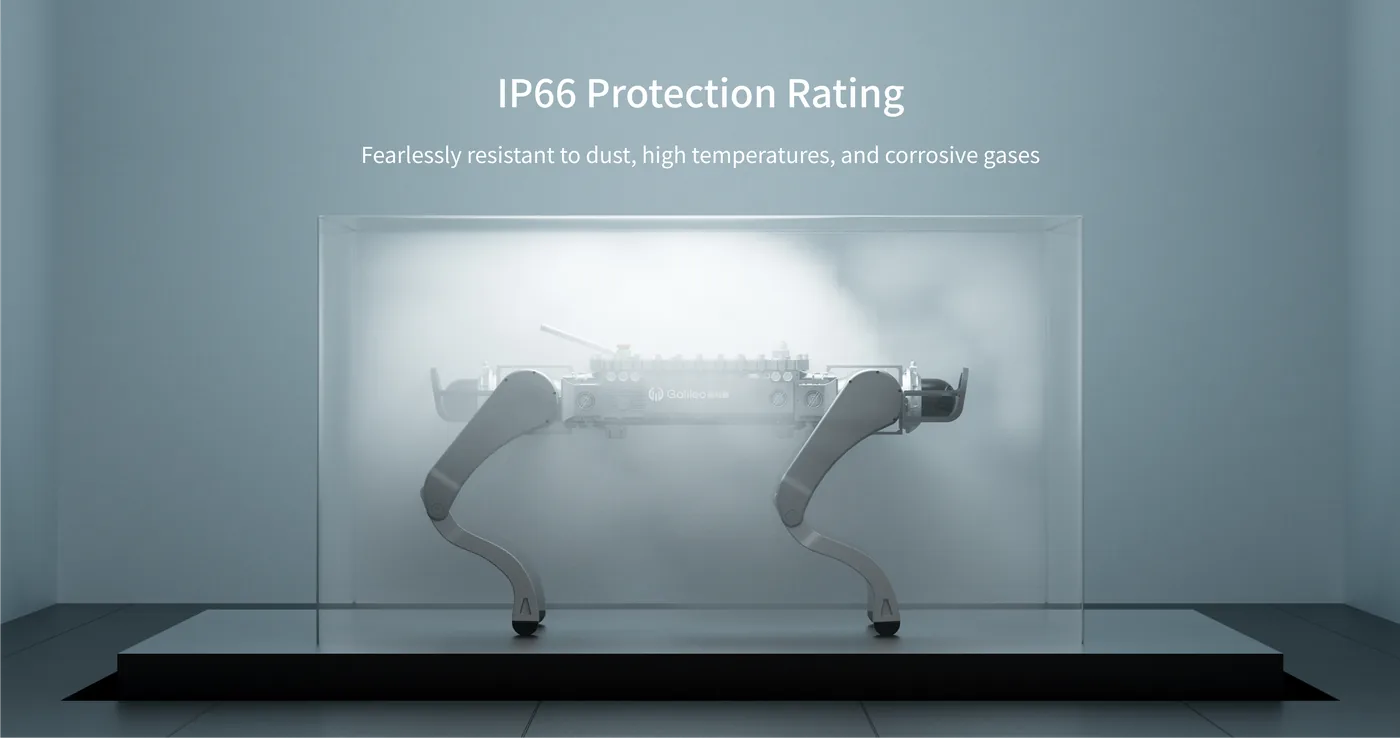

Ex ⅡB T4 Gb ve IP67
Patlama koruması ve IP67, robotu petrokimya tesisi ve gaz istasyonu gibi sınıflandırılmış alanlarda çalışabilir kılar.
GALILEO EX-1
Explosion-Proof Quadruped Inspection Robot
- Explosion protection
- Ex ⅡB T4 Gb
- Rating
- Joint torque
- 500 N·m
- Maximum
- Payload
- 30 kg
- Continuous walking load
- Ditch
- 30 cm
- Crossing width
The GALILEO EX-1 is a quadruped inspection robot certified to work in atmospheres with explosive and toxic gases. Ex ⅡB T4 Gb explosion protection and IP67 make the robot deployable in petrochemical plants, gas stations and comparable classified areas.
Read moreShow less
A methane detection sensor, dual-light gimbal and voice intercom module are carried on the body as standard payload.
Enterprise supply · specification support · integration engineering
Overview
The GALILEO EX-1 is a quadruped inspection robot certified to work in atmospheres with explosive and toxic gases. We supply GALILEO hardware to corporate projects with enterprise supply, commissioning and engineering support. The investment figure is set by corporate quotation according to configuration, quantity and delivery terms.
Ex ⅡB T4 Gb explosion protection and IP67 make the robot deployable in petrochemical plants, gas stations and comparable classified areas. A methane detection sensor, dual-light gimbal and voice intercom module are carried on the body as standard payload.
500 N·m of joint torque and dual encoders keep the 120 kg body controlled over 25 cm obstacles and 30 cm trenches. Remote control runs through an explosion-proof tablet, so the operator carries out the mission without entering the classified area.
4 use casesThe GALILEO EX-1 in motion
Tap the cover to play; sound and loading start only on click.
Use Cases
The use cases the manufacturer defines for the GALILEO EX-1.
- Field inspection
- Security and patrol
- Emergency response
- Construction site
Key Advantages

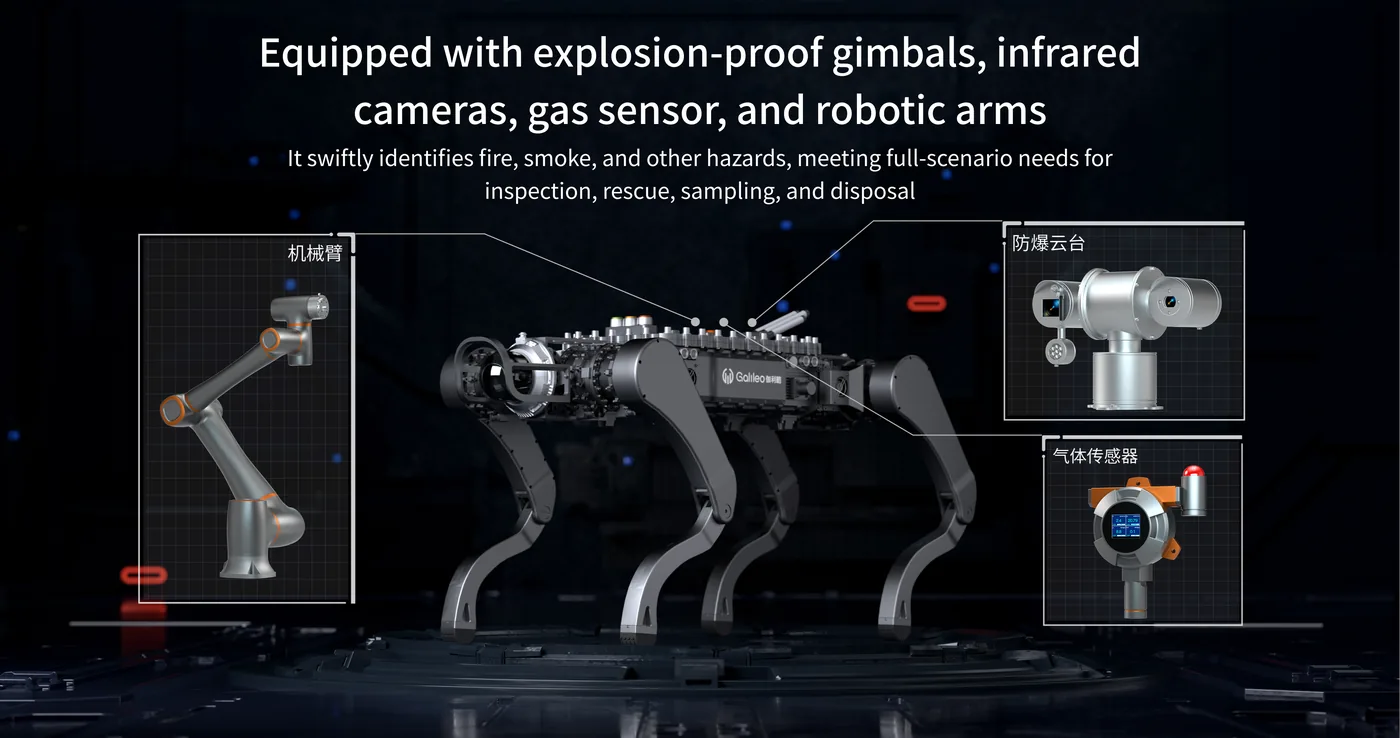

Metan sensörü ve çift ışıklı gimbal
Gaz algılama sensörü, çift ışıklı gimbal, sesli görüşme modülü ve hoparlör gövde üzerinde standart yük olarak taşınır.

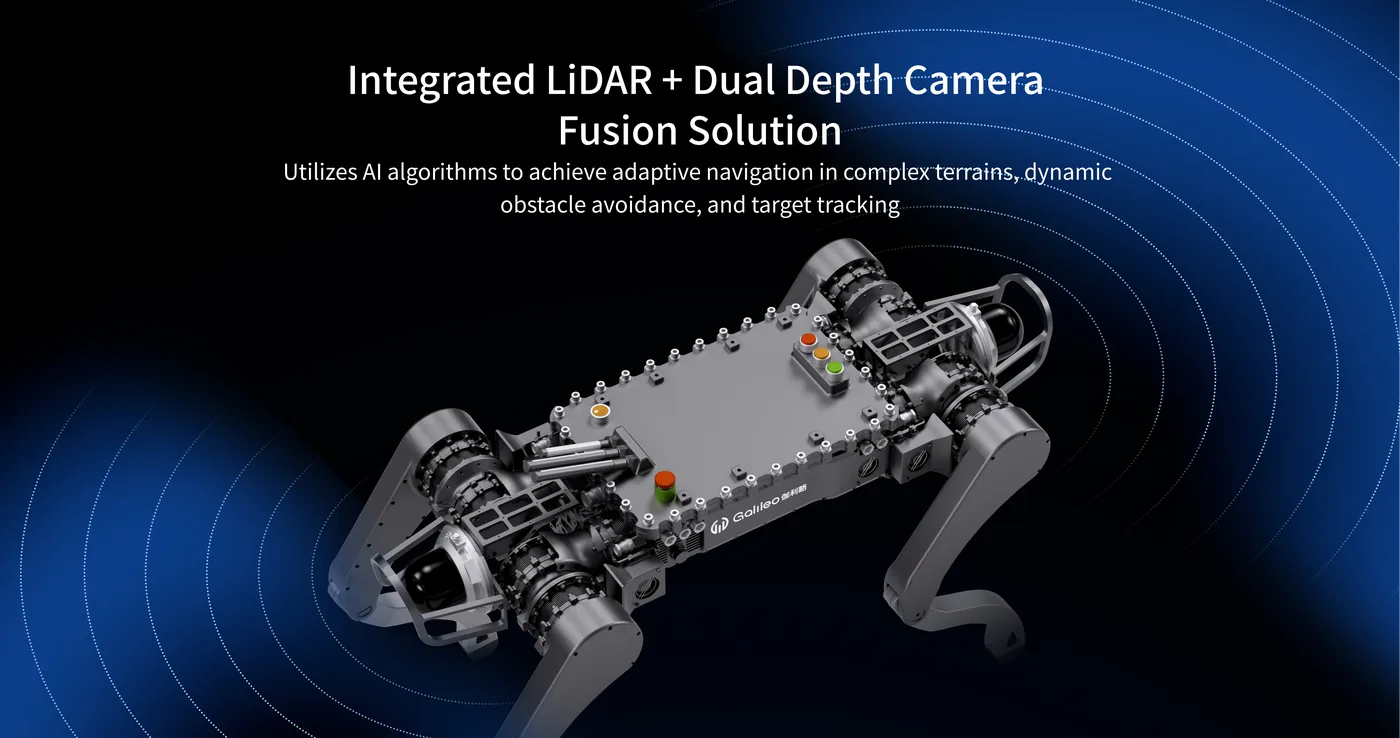

Lidar ve iki derinlik kamerası
Bir lidar ve iki derinlik kamerası otonom navigasyonu besler.
- Kumanda patlama korumalı tablet üzerinden yapılır, operatör alana girmez.
The GALILEO EX-1 up close
5 images; tap to enlarge.
Technical Specifications
19 values in 7 categories; data published by the manufacturer.
General structure
- Degrees of freedom
- 12 DoF
- Joint motor
- High stiffness, high power density permanent magnet synchronous motor
- Manufacturer note
- Explosion-proof rating Ex ⅡB T4 Gb
Size and weight
- Dimensions (standing)
- 1300 x 650 x 790 mm (length x width x height)
- Weight
- 120 kg
Motion and performance
- Walking payload
- 30 (continuous walking)
- Maximum speed
- 1 m/s
- Climb angle
- 30°
- Obstacle and step
- 25 cm steps; 25 cm obstacle crossing; 30 cm ditch crossing width
- Joint torque
- 500 N·m joint torque; dual encoder
Power and runtime
- Battery capacity
- 2160 Wh
- Battery
- 48 V 45.2 Ah (2160 Wh)
- Battery voltage
- 48 V
- Runtime
- 2 h
Sensors and connectivity
- Sensors
- One lidar and two depth cameras; 4G connectivity
Software and development
- Processor
- Onboard controller; secondary development through an SDK supporting TCP and ROS
- Software features
- Dual-light gimbal, methane gas detection sensor, voice intercom module and speaker; autonomous navigation; explosion-proof tablet controller
Environmental resilience
- Ingress protection
- IP67
- Operating temperature
- -20°C to 50°C
Sources and documents
Verified on the manufacturer page on 18 September 2026.
An itemised quote for the GALILEO EX-1 is prepared by configuration, quantity and delivery scope.
Purchasing support
Supply model
Supply to Turkey is planned per project; import, delivery and commissioning scope are itemised in the quote.
Pre-sales assessment
Site and mission focused technical feasibility; specification and administrative process support.
- Continue
Demo and site visit request
Send a demo request; availability and scope are settled in the call.
- Continue
Source documents
Technical values come from the manufacturer's documents; verified on 18 September 2026. 0 documents at the bottom of the page.
Get a quote for the EX-1
Robotic system costs are optimised according to the selected hardware platform, additional sensor and payload configurations, and the integration scenarios specific to your site. Share your requirements and our engineering team will prepare a feasibility report and a pro forma quotation tailored to your organisation.
- Supply and delivery scheduling backed directly by the manufacturer
- Site- and mission-focused technical feasibility and simulation
- Turnkey hardware, software and mission integration
- Advisory on corporate tenders, specifications and administrative processes
Direct contact and advisory line: 0850 532 6 777
EX-1: Frequently Asked Questions
The most common questions about the GALILEO EX-1.
EX-1 hangi ortamlarda çalışabilir?
Ex ⅡB T4 Gb patlama koruması ve IP67 ile sınıflandırılmış alanlarda çalışır: petrokimya tesisi, gaz istasyonu ve benzeri zehirli ya da patlayıcı gaz bulunan sahalar.
Gaz algılama var mı?
Gövdede metan algılama sensörü bulunur. Çift ışıklı gimbal, sesli görüşme modülü ve hoparlör de standart yük olarak taşınır.
Operatör sahaya girmek zorunda mı?
Hayır. Kumanda patlama korumalı tablet üzerinden yapılır ve robot otonom navigasyonu destekler; görev alan dışından yürütülebilir.
