How is the PUDU D9 priced?
The investment is set by corporate quotation according to configuration, the dexterous hand and software package, training scope and quantity. The quote covers installation, operator training, a 1-year warranty and a technical support protocol (SLA).
Technical specifications

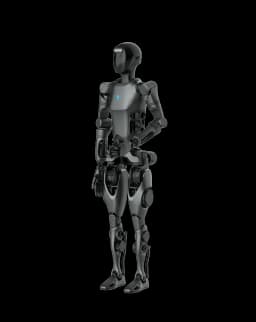

170 cm tall and 65 kg; 42 independent degrees of freedom (6 per leg, 7 per arm), 352 N·m of maximum joint torque and a 2 m/s maximum walking speed. It carries 20 kg in a test environment and 10 kg with a single arm. Computing power is 275 TOPS; perception is built from RGB and RGBD cameras, tactile sensors and an IMU, with a 15 Ah (0.72 kWh) battery.
The PUDU DH11 dexterous hand
The 11-DOF hand (6 active, 5 passive) reads contact through 12 tactile sensing regions and 1018 sensor pixels. Maximum finger grip is 30 N and maximum lifting load 40 kg; fingers bend at 150°/s and the thumb at 191°/s. Pick and place and tool manipulation are handled by this hand.
Use cases and supply
Research labs, demonstration areas, customer engagement and object manipulation scenarios. As the Pudu Robotics distributor for Turkey, Robotlar.org delivers the D9 with installation, operator training and a technical support protocol (SLA); configuration and the delivery schedule are worked out together for your scenario.
